7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55

7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55
7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55

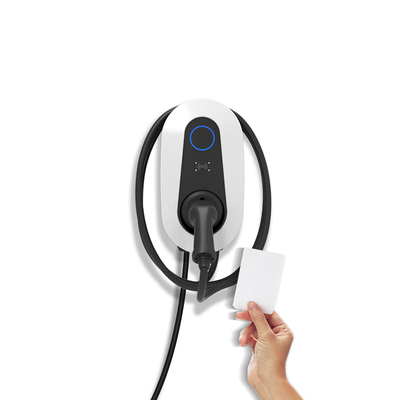

صورة كبيرة :  7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55

تفاصيل المنتج:
مكان المنشأ: قوانغدونغ ، الصين
اسم العلامة التجارية: KIWI
رقم الموديل: S1-تيار متردد 220 فولت-7 كيلو وات
شروط الدفع والشحن:
الحد الأدنى لكمية: 2
الأسعار: $270-320
اتصل

7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55

وصف
طاقة الإخراج: 7 كيلوواط جهد المدخلات: 200 - 220 فولت
تردد الإدخال: 50 هرتز+-3 ٪ أو 60 هرتز+-3 ٪ تصنيف الحماية: IP55
درجة حرارة التشغيل: -35 درجة مئوية إلى +50 درجة مئوية القوة المقدرة: 7kw 、 11kw 、 22kw
مقاس: 202*104*388 ملم وزن: 6 كجم (بدون عمود)
إدخال تيار: كل مرحلة 0 ~ 32a جهد الخرج: AC 220V ± 20 ٪
تيار الإخراج: كل مرحلة 0-32A طول سلك القابس: 5 م (قابلة للتخصيص)
الرطوبة النسبية: <95 ٪ ， لا تكثيف عمر: ≥10000 مرة
ارتفاع التشغيل: <2000m
إبراز:

Type 2 EV charger wall-mounted,7kW AC EV charging station,22kW EV charger IP55 rated

,

7kW AC EV charging station

,

22kW EV charger IP55 rated

7kw 11kw 22kw EV Charger at Home for Electric Cars IEC62196 Type 2 Single Three Phase Electric Vehicle AC Charging Station
7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 0 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 1 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 2 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 3 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 4 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 5
Technical Specifications
Item Specification
Installation Method Wall-mounted, column (optional)
Rated Power 7KW, 11KW, 22KW
Charging mode APP(QRCode), Plug & Charge, RFID
Size (H * W * D) 202*104*388mm
Weight 6kg (Without column)
Input
Input voltage 230VAC/400 VAC/400 VAC
Input Current Each phase 0~32A
Leakage Protection Overcurrent, overvoltage, undervoltage, ground fault, integrated surge protection, RDC (typeA + DC6mA), over-temperature protection
Output
Output voltage AC 220V±20%
Output current Each phase 0-32A
Connection method
Number of plug 1
Charging connection method 1. Connection method C (plug version)
2. Connection method B (socket version)
Plug wire length 5m (customizable)
Plug standard Type-1/Type-2/GB/T
Human-computer interaction
LED LED Status light
Other
Protection level IP55
Operating temperature -35°C to +50°C
Relative humidity <95%, No condensation
Lifespan ≥10000 times
7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 6 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 7 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 8 7kW 11kW 22kW Type 2 EV Charger Wall-Mounted AC Charging Station IP55 9
Frequently Asked Questions
Q: How is your electric vehicle charging station after-sale service?
  • We will build a whatsapp/skype/wechat service group with technical engineers and company leader if needed
  • We provide 24/7 online service, so you're welcome to contact us any time you need
  • Will change the part for free during warranty if non-human damage, for other problems, we'd like to supply customer the part at original cost
Q: How is your payment method?
Same as other EV charging stations suppliers, normally 30%-50% deposit and balance paid off before shipment. Special requirement customer please contact us for further discussion.
Q: How long is your normal delivery time?
  • For stock EV charger, can arrange the shipment immediately after you confirm the order
  • For custom AC EV charger less than 100pcs, normally 7-15 days
  • For custom DC EV charger less than 100pcs, normally 15-25 days
Q: Can I use my own card or app at your electric car charging stations?
Normally the RFID card and app have to identify our electric charger, so we will provide you 3 free RFID cards for each charger.
Q: Will your electric car charger charging slower in winter?
The electric charging station may need a little longer warm up time before normal run, but this is very small change, it won't influence the output power, so we can ignore this influence.
Q: Can you provide a video how to install the electric vehicle charger?
Yes we have the installation guide video, it's very easy and anyone who know a little about electricity safety can finish this work, we will also be ready online to help your any possible question.
Q: How can I become your exclusive agency?
Only if you have this interest, you can be our agent if we don't have exclusive agent in your market. If you want to be exclusive agent, we will have an annual sales amount target requirement, welcome to further discuss about more details, we're open to any constructive advice.
